Overview:

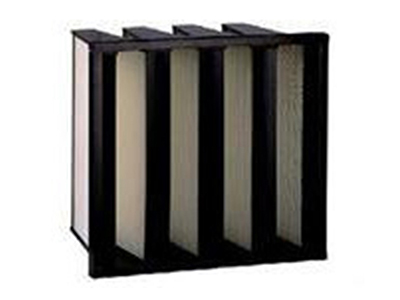

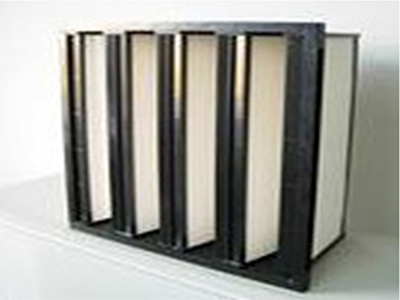

       Type V high air filter for air conditioning systems that require high cleanliness.The V-filter can be installed in the central air conditioner to protect the ultra-efficient filter at the end of the clean room, or installed in the pipeline for process air supply systems with special cleaning requirements.

Highlights of the V-Filter:
1. Large air volume, suitable for installation in central air conditioners and air supply pipes. When the surface air speed is 2.7m/s, the rated air volume of each 610 × 610 × 292mm standard W filter can reach 3600m3/h.
2. High efficiency, glass fiber filter material, large filtration area, and clean production environment can ensure that the filtration efficiency of the VH filter reaches 98% (H13) and 95% (H10) for 0.3mm particles under the rated air volume.
3. The resistance is low, the VH filter structure is compact and reasonable, and there are many filter materials. Under the rated air volume, the resistance is not higher than 250Pa.Laser scan count MPPs efficiency: 85%, 99.95%.Filtration efficiency level: H10, H13.
