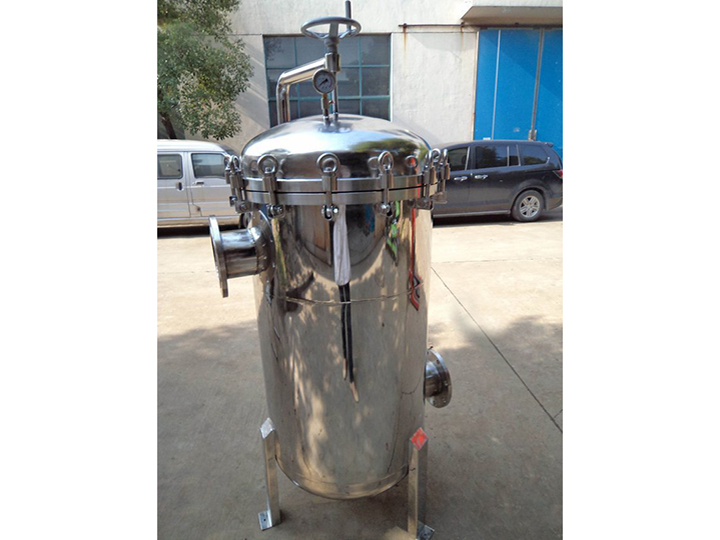

Product Description:

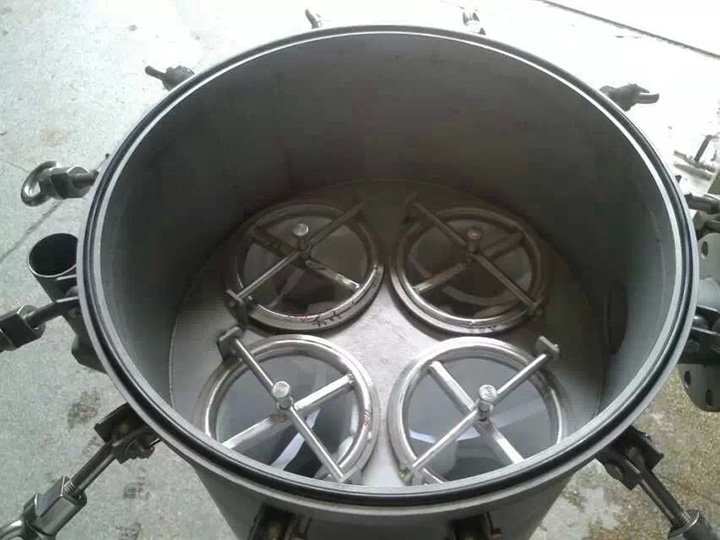

The multi-bag filter is a filter system. The filter is supported by a metal mesh basket inside the filter. The liquid flows in through the inlet, filters through the filter bag, and then flows out from the outlet. Impurities flow out from the outlet. Impurities are intercepted in the filter bag, and can continue to be used after replacing the filter bag.

How it works:
The multi-bag bag filter adopts a side inlet and bottom outlet mode (bottom inlet and bottom outlet mode can also be adopted). The filter liquid medium is pressed into or drawn into the filter barrel through the pressure in the pipeline. The liquid medium to be filtered supports the filter bag filtration supported by the blue filter through the electro-polishing punch, and a suitable solid-liquid separation is generated to achieve the effect of the liquid medium being filtered.Different filtration precision depends on the filter bag with different precision. Since the liquid medium flows in from the top of the filter bag after entering the filter, the liquid can be evenly distributed throughout the filter surface of the filter bag, so that the fluid distribution in the entire layer is basically constant and consistent, the negative impact of turbulence is small, and the filtering effect is good.

Technical parameters:
Design pressure: 1.0Mpa
Large operating temperature: 150°C
Material: stainless steel SS304 or SS316L
Surface treatment: Mirror polished, matte
Model: The model can be designed with reference to the flow size
