Filter structure and working principle:

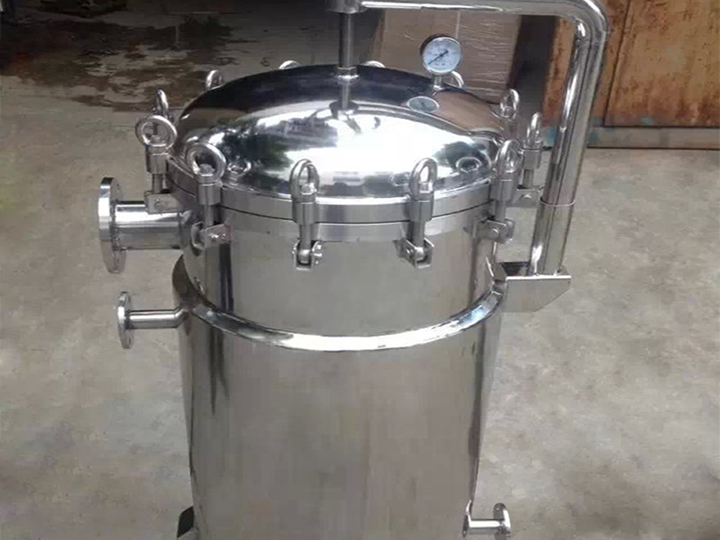

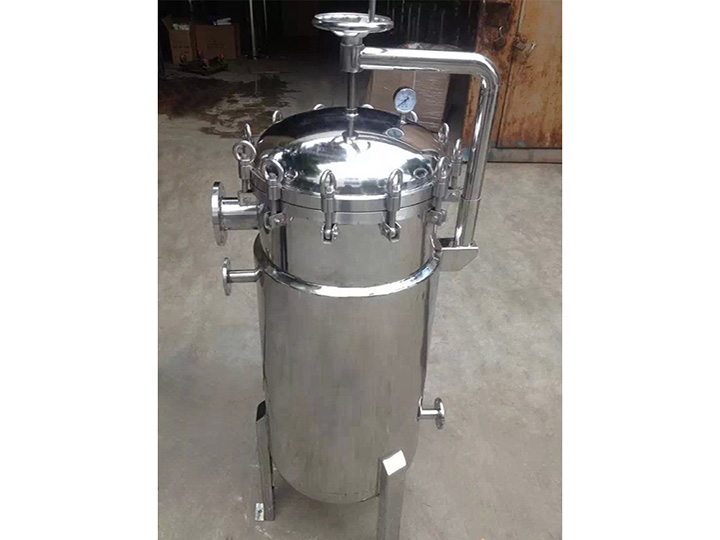

Bag filter is a kind of multi-purpose filtration equipment with small size, simple and flexible operation, sealed work and strong applicability.The bag filter is a pressure filter device, which mainly consists of a filter cylinder, a filter barrel cover and a quick-open structure. The stainless steel filter bag reinforcing mesh and other main components. The filtrate flows into the filter bag from the fat side inlet pipe of the filter housing. The filter bag itself is installed in the reinforcing mesh basket. The liquid penetrates through the filter bag of the required fineness level to obtain qualified filtrate. Impurity particles are intercepted by the filter bag.The machine is convenient to replace the filter bag, and the filter is basically free of material consumption.The main advantages of the bag filter: the probability of side leakage of the filter bag is small, which effectively guarantees the quality of the filter.Bag filter can carry large working pressure and small pressure loss.The filtering accuracy of the filter bag continues to improve.The bag filter has a large processing capacity, small size, and large dirt capacity.Based on the working principle and structure of the bag filter system, replacing the filter bag is convenient and quick, and the filter is clean-free, saving labor and time.Filter bags can be used repeatedly, saving costs.Bag filter has a wide range of applications, flexible use, and various installation methods.

Bag filter specifications and features:

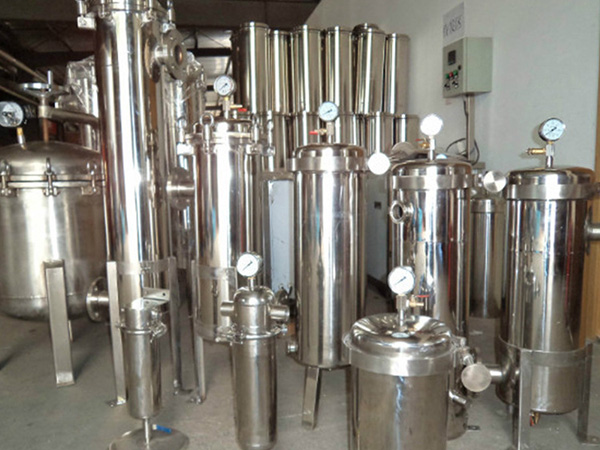

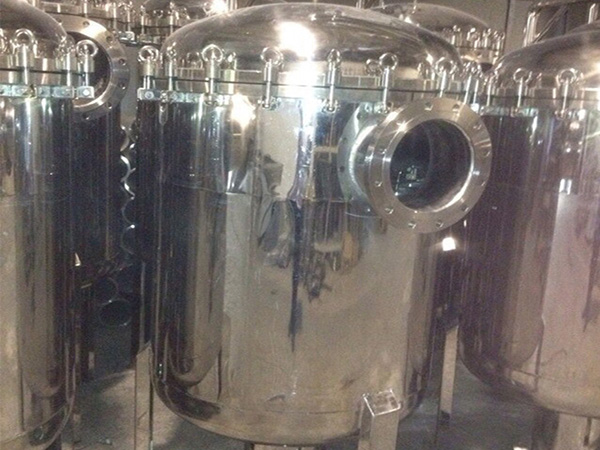

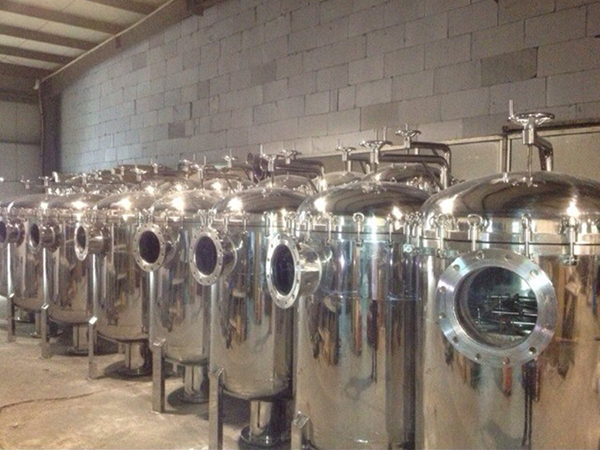

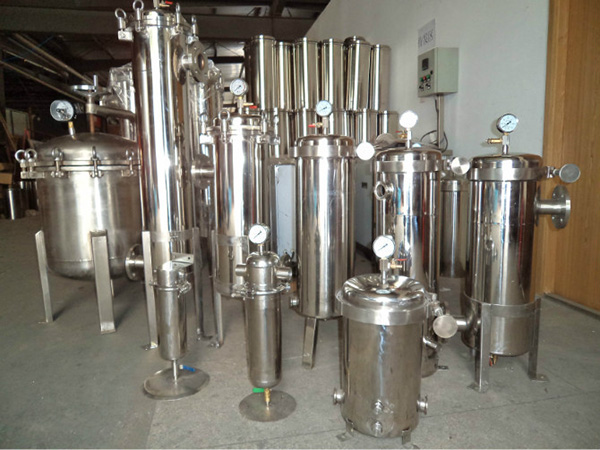

Bag filters are divided into: single bag filters, multi-bag filters, and sandwich filters.Multi-bag filters are suitable for high flow filtration, from 2 bags to 24 bags.Bag filter is suitable for large flow filtration, which can accommodate other impurities. It is also suitable for occasions where it is hoped that the filter bag will be replaced after a long time. The single machine has a large flow rate of 90-1080 per cubic hour, a quick-open design, and convenient daily maintenance.

Primary use:
       Paint, beer, botanical gardens, pharmaceuticals, chemicals, petroleum products, textile chemicals, photosensitive chemicals, electroplating solutions, milk, mineral water, hot solvents, latex, industrial water, sugar water, resins, inks, industrial wastewater, fruit juices, cooking oils, waxes, etc.
